動態電(dian)動平(ping)衡閥當前位置:首頁 > 產品中心 > 平衡閥 > 動態電動平衡閥
  • 動態電動平衡閥

動態電動平衡閥

  • 產品名稱:國產激情久久久久影院小草:動態電動平衡閥
  • 產品型號:A/D-EDRV
  • 產品口徑:DN25-250mm
  • 產品壓力:1.6MPa
  • 產品材質:鑄鐵、鑄鋼、不銹鋼
  • 聯系電話:021-51061127
  • 聯系傳真:021-51062214
  • Email:fashengfamen@126.com
  • 聯系人:陳云非
  • 聯系手機:18217570461
  • QQ:203398752
  • 公司名:上海閥盛閥門制造有限公司
  • 帳號:03416900040048386
  • 開戶行:農行上海水清南路支行
  • 售后承諾:質保一年,質量三包:包修、包換、包退。

上海閥(fa)(fa)(fa)盛閥(fa)(fa)(fa)門制造有(you)限(xian)公司主要生產(chan)動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa),可提供動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa)價格,動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa)說明書,動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa)實(shi)物圖,動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa)結(jie)構圖,動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa)外(wai)形尺(chi)寸,動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa)執行標準,動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa)工作原理,動(dong)(dong)(dong)(dong)態(tai)(tai)(tai)電(dian)(dian)(dian)動(dong)(dong)(dong)(dong)平(ping)(ping)衡(heng)(heng)(heng)閥(fa)(fa)(fa)作用(yong)特點。

動態電動平衡閥是區別于傳統的電動調節閥的新一代產品,是動態平衡與電動調節一體化的產品。動態平衡電動調節閥是以利用介質自身的壓力變化控制,是電動比例積分控制的一種雙閥芯的多功能閥門,廣泛用于供熱及制冷空調等非腐蝕性介質的流量控制閥門,也可以做電關閉閥用。運行前一次性調節,既可以使系統流量翕動恒定在要求的設定值。
動態電動平衡閥工作原理

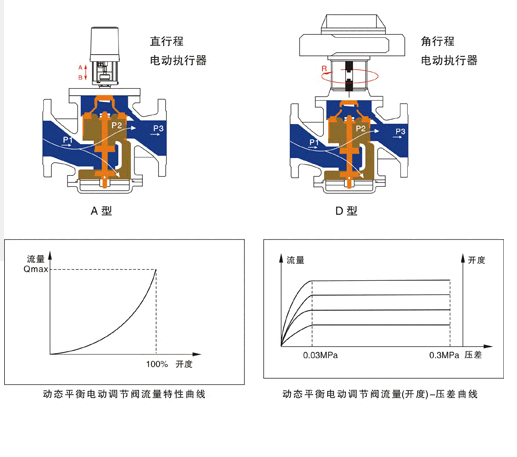

  如下圖所示,在系統負荷波動較大的變流量系統中,當系統壓力變化時,動態平衡電動調節閥二端的壓差(P1-P3)也隨之變化:
  ⑴、當進口壓力P1升高時,(P1-P2)增大,這時電動閥閥芯向上運動,使P1、P2間開度減少,閥芯壓力P2降低;當進口壓力P1降低時,(P1-P2)減小,這時電動閥閥芯向下運動,使P1、P2間開度增大,閥芯壓力P2升高。因此,無論系統的壓力怎樣變化,通過電動閥閥芯的調節作用,P2、P3間的壓差始終保持不變。因此這種動閥的抗干擾能力強,具有動態平衡的功能;
  ⑵、當直行程電動執行器接受控制信號使閥軸延A—B向上下運動(或角行程電動執行器接受控制信號使閥軸延R向旋轉)時,P2、P3間的開度也隨之變化。由于不管系統壓差(P1-P3)如何變化,P2、P3間的壓差(P2-P3)始終不變,因此對應于任一開度位置,其輸送的水流量都是一定的,并且電動調節閥實際的流量特性曲線與其理想的流量特性曲線是一致的,沒有偏離。因此這種電動調節閥較傳統的電動調節閥具有更好的調節特性。

動態電動平衡閥

動態電動平衡閥技術參數:

產品型號
閥門形式
規格
壓差范圍
(KPa)
流量范圍
(m0/h)
工作
壓力
流量
誤差
流體
溫度
A/D-EDRV1
二通
DN25
30-300
0.2-2.9
PN16
5%
0-100℃
A/D-EDRV2
DN32
30-300
0.5-4-7
A/D-EDRV3
DN40
30-300
1-7-7
A/D-EDRV4
DN50
30-300
2-12.1
A/D-EDRV8
DN65
30-300
3-20.4
A/D-EDRV9
DN80
30-300
5-30.8
A/D-EDRV10
DN1OO
30-300
10-45.3
A/D-EDRV11
DN125
30-300
15-70-7
A/D-EDRV12
DN150
30-300
20-101.8
A/D-EDRV13
DN200
33-300
5.0-360
A/D-EDRV14
DN250
22-210
4.O-460
動態電動平衡閥尺寸參數
產品型號
閥門形式
規格
外形及安裝尺寸(mm)
L
H1
H2
D(φ)法蘭
G螺紋
A/D-EDRV1
二通
絲口
DN25
160
265
70

G1
A/D-EDRV2
DN32
180
275
70

G1-1/4
A/D-EDRV3
DN40
300
290
90

G1-1/2
A/D-EDRV4
DN50
300
290
90

G2
A/D-EDRV5
二通
法蘭
DN32
160
220
70
1OO

A/D-EDRV6
DN40
200
235
110
110

A/D-EDRV7
DN50
215
230
115
125

A/D-EDRV8
DN65
230
238
120
145

A/D-EDRV9
DN80
275
275
146
160

A/D-EDRV10
DNl00
290
295
165
180

A/D-EDRV11
DNl25
315
307
208
21O

A/D-EDRV12
DNl50
350
326
205
240

A/D-EDRV13
DN200
430
715
295
295

A/D-EDRV14
DN250
520
740
345
355
