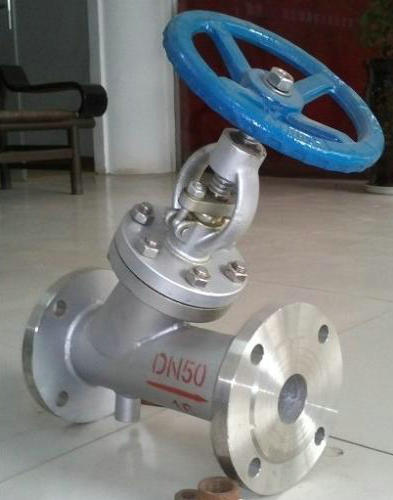

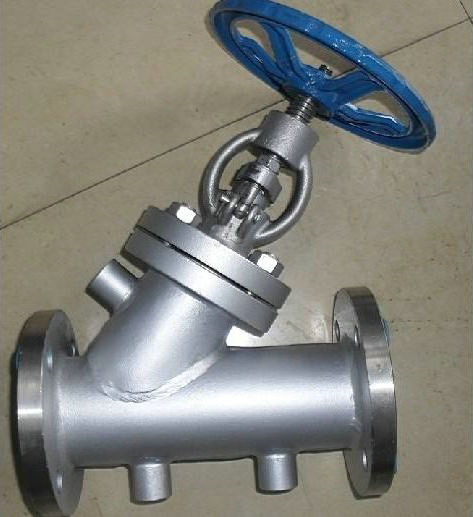

直流式保溫截止閥
- 產品名稱:國產激情久久久久影院小草:直流式保溫截止閥
- 產品型號:BJ45W
- 產品口徑:DN15-200mm
- 產品壓力:1.6-2.5MPa
- 產品材質:鑄鋼、不銹鋼
- 聯系電話:021-51061127
- 聯系傳真:021-51062214
- Email:fashengfamen@126.com
- 聯系人:陳云非
- 聯系手機:18217570461
- QQ:203398752
- 公司名:上海閥盛閥門制造有限公司
- 帳號:03416900040048386
- 開戶行:農行上海水清南路支行
- 售后承諾:質保一年,質量三包:包修、包換、包退。
上(shang)海閥(fa)盛閥(fa)門制(zhi)造有限(xian)公司主要(yao)生產直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa),可提(ti)供直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa)價格,直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa)說明書,直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa)實物(wu)圖(tu),直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa)結構圖(tu),直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa)外形尺寸,直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa)執行標準(zhun),直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa)工作(zuo)原(yuan)理,直(zhi)(zhi)流(liu)(liu)式(shi)(shi)保(bao)(bao)(bao)溫(wen)(wen)截(jie)止(zhi)(zhi)(zhi)閥(fa)作(zuo)用(yong)特點(dian)。
零件名稱LTEM | ZG1CR18NI9TI系列 | ZGOOCR18NI10系列 | ZG1Cr18Ni12MO2Ti系列 | ZGOOCR17NI14MO2系列 | WCB系列 |
閥體/閥蓋世BODY/CAP | ZG1CR18NI9TI | ZGOOCR18NI10 | ZG1Cr18Ni12MO2Ti | ZGOOCR17NI14MO2 | WCB |
閘板WEDGE | ZG1CR18NI9TI | ZGOOCR18NI10 | ZG1Cr18Ni12MO2Ti | ZGOOCR17NI14MO2 | 1Cr13 |
閥桿STEM | 1CR18NI9TI | 00cr18ni10 | 1CR18NI12MOTI | OOCR17NI14MO | 1Cr13 |
填料PACKING | PTFE紡織 | PTFE紡織 | PTFE紡織 | PTFE紡織 | 石墨 GRAPHITE |
墊片GASKET | 304L+PTFE | 304L+PTFE | 316L+PTFE | 316L+PTFE | 石墨+304 GRAPHITE+304 |
壓蓋GLAND FLANGE | ZG1CR18NI9TI | ZG00CR18ni10 | ZG1Cr18Ni12MO2Ti | ZGOOCR17NI14MO2 | WCB |
填料壓環 STUFFING RING | 1CR18NI9TI | 00CR18NI10 | 1Cr18NI12MOTI | OOCR17NI14MO | 1Cr13 |
螺栓BOLT | 1cr17ni2 | 1CR17NI2 | 1Cr17NI2 | 1Cr17Ni2 | 35CrMoA |
螺母NUT | 1cr18ni9ti | 1CR18NI9TI | 1Cr18NI9ti | 1Cr18NI9ti | 45 |
直流式保溫截(jie)止閥主(zhu)要外形尺寸(cun)及重(zhong)量:
PN(MPa) | DN(mm) | 尺寸(mm) | 重量 | |||||||||
L | L1 | H | 3-G | D | D1 | D2 | b | Z-φd | Do | kg | ||
2.5 | 15 | 200 | 50 | 210 | 1-2 | 105 | 75 | 55 | 16 | 4--φ14 | 120 | 14 |
20 | 220 | 50 | 240 | 1-2 | 115 | 85 | 65 | 16 | 4--φ14 | 140 | 18 | |
25 | 220 | 50 | 250 | 1-2 | 135 | 100 | 78 | 18 | 4--φ18 | 160 | 25 | |
32 | 250 | 55 | 270 | 1-2 | 145 | 110 | 85 | 18 | 4--φ18 | 160 | 30 | |
40 | 270 | 60 | 310 | 1-2 | 160 | 125 | 100 | 20 | 4--φ18 | 160 | 36 | |
50 | 300 | 60 | 330 | 3-4 | 180 | 145 | 120 | 22 | 8-φ18 | 240 | 40 | |
65 | 350 | 65 | 360 | 3-4 | 195 | 160 | 135 | 22 | 8-φ18 | 240 | 54 | |
80 | 380 | 70 | 400 | 3-4 | 230 | 190 | 160 | 24 | 8-φ23 | 280 | 70 | |
100 | 430 | 75 | 480 | 1 | 270 | 220 | 188 | 28 | 8-φ25 | 320 | 100 | |
125 | 490 | 80 | 550 | 1 | 300 | 250 | 218 | 30 | 8-φ25 | 360 | 130 | |
150 | 570 | 90 | 620 | 1 | 330 | 280 | 248 | 32 | 12-φ25 | 360 | 170 | |
200 | 690 | 95 | 750 | 1 | 395 | 340 | 302 | 36 | 12-φ25 | 400 | 250 | |
4 | 15 | 200 | 50 | 210 | 1-2 | 105 | 75 | 55 | 16 | 4--φ14 | 120 | 14 |
20 | 220 | 50 | 240 | 1-2 | 115 | 85 | 65 | 16 | 4--φ14 | 140 | 18 | |
25 | 220 | 50 | 250 | 1-2 | 135 | 100 | 78 | 18 | 4--φ18 | 160 | 25 | |
32 | 250 | 55 | 270 | 1-2 | 145 | 110 | 85 | 18 | 4--φ18 | 160 | 33 | |
40 | 270 | 60 | 310 | 1-2 | 160 | 125 | 100 | 20 | 4--φ18 | 160 | 41 | |
50 | 300 | 60 | 330 | 3-4 | 180 | 145 | 120 | 22 | 8-φ18 | 240 | 45 | |
65 | 350 | 65 | 360 | 3-4 | 192 | 160 | 135 | 22 | 8-φ18 | 240 | 62 | |
80 | 380 | 70 | 400 | 3-4 | 230 | 190 | 160 | 24 | 8-φ23 | 280 | 80 | |
100 | 430 | 75 | 480 | 1 | 270 | 220 | 188 | 28 | 8-φ25 | 320 | 100 | |
125 | 490 | 80 | 550 | 1 | 300 | 250 | 218 | 30 | 8-φ25 | 360 | 130 | |
150 | 570 | 90 | 620 | 1 | 350 | 295 | 258 | 34 | 12-φ30 | 360 | 185 | |
200 | 690 | 95 | 750 | 1 | 415 | 355 | 315 | 40 | 12-φ34 | 400 | 268 |
