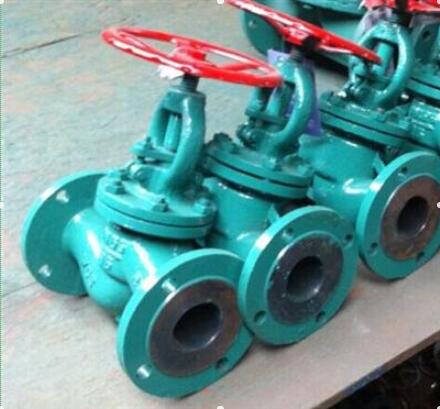

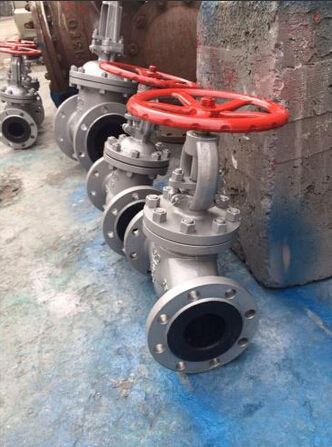

直通式襯膠截止閥
- 產品名稱:國產激情久久久久影院小草:直通式襯膠截止閥
- 產品型號:J41J
- 產品口徑:DN15-350mm
- 產品壓力:1.6-2.5MPa
- 產品材質:鑄鐵、鑄鋼、不銹鋼
- 聯系電話:021-51061127
- 聯系傳真:021-51062214
- Email:fashengfamen@126.com
- 聯系人:陳云非
- 聯系手機:18217570461
- QQ:203398752
- 公司名:上海閥盛閥門制造有限公司
- 帳號:03416900040048386
- 開戶行:農行上海水清南路支行
- 售后承諾:質保一年,質量三包:包修、包換、包退。
上海閥(fa)盛閥(fa)門制造有(you)限公司主要(yao)生產直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa),可提供(gong)直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa)價格,直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa)說明書,直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa)實物圖(tu),直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa)結(jie)構圖(tu),直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa)外形尺寸,直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa)執行標準,直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa)工作(zuo)原(yuan)理,直(zhi)(zhi)(zhi)通(tong)式(shi)襯(chen)膠(jiao)截(jie)(jie)止(zhi)(zhi)(zhi)閥(fa)作(zuo)用特點。
序號 | 零件名稱 | 灰鑄鐵 | 鑄鋼 | 不銹耐酸鑄鋼 | 超低碳不銹耐酸鑄鋼 | ||
Z | C | P | R | PL | RL | ||
1 | 閥體/閥蓋 | HT250 | WCB | CF8 | CF8M | CF3 | CF3M |
2 | 球體/閥桿 | 25 | 2Cr13 | 1Cr18Ni9 | 1Cr18Ni12Mo2Ti | 00Cr18Ni10 | 00Cr17Ni14Mo2 |
3 | 襯里/閥座 | PCTEF(F3),FEP(F46),PFA(可溶F4),PP,PO | |||||
4 | 填料壓蓋 | WCB | CF8 | CF8M | CF3 | CF3M | |
5 | 填料 | PTFE(F4) | PTFE(F4) | PTFE(F4) | |||
6 | 活節螺栓 | 35 | 1Cr17Ni2 | 1Cr17Ni2 | |||
7 | 閥桿螺母 | ZCuAl10Fe3 | ZCuAl10Fe3 | ZCuAl10Fe3 | |||
8 | 緊固螺栓 | 35 | 1Cr17Ni2 | 1Cr18Ni9Ti | |||
9 | 螺母 | 45 | 0Cr18Ni9 | 0Cr18Ni9 | |||
10 | 手柄 | WCB | WCB | WCB |
直通式襯膠截止閥主要外形尺寸:
公稱通經 | L | D | D1 | D2 | f | b | Z-φd | |
DN(mm) | NPS(inch) | PN1.0MPa | ||||||
15 | 1/2 | 130 | 95 | 65 | 45 | 2 | 14 | 4-φ14 |
20 | 3/4 | 150 | 105 | 75 | 55 | 2 | 16 | 4-φ14 |
25 | 1 | 160 | 115 | 85 | 65 | 2 | 16 | 4-φ14 |
32 | 11/4 | 180 | 135 | 100 | 78 | 2 | 18 | 4-φ18 |
40 | 11/2 | 200 | 145 | 110 | 85 | 3 | 18 | 4-φ18 |
50 | 2 | 230 | 160 | 125 | 100 | 3 | 20 | 4-φ18 |
65 | 21/2 | 290 | 180 | 145 | 120 | 3 | 20 | 4-φ18 |
80 | 3 | 310 | 195 | 160 | 135 | 3 | 22 | 4-φ18 |
100 | 4 | 350 | 215 | 180 | 155 | 3 | 22 | 8-φ18 |
125 | 5 | 400 | 245 | 210 | 185 | 3 | 24 | 8-φ18 |
150 | 6 | 480 | 280 | 240 | 210 | 3 | 24 | 8-φ23 |
200 | 8 | 495 | 335 | 295 | 265 | 3 | 26 | 8-φ23 |
250 | 10 | 622 | 390 | 350 | 320 | 3 | 28 | 12-φ23 |
300 | 12 | 698 | 440 | 400 | 368 | 4 | 28 | 12-φ23 |
350 | 14 | 787 | 500 | 460 | 428 | 4 | 30 | 16-φ23 |
PN1.6MPa | ||||||||
15 | 1/2 | 130 | 95 | 65 | 45 | 2 | 14 | 4-φ14 |
20 | 3/4 | 150 | 105 | 75 | 55 | 2 | 16 | 4-φ14 |
25 | 1 | 160 | 115 | 85 | 65 | 2 | 16 | 4-φ14 |
32 | 11/4 | 180 | 135 | 100 | 78 | 2 | 18 | 4-φ18 |
40 | 11/2 | 200 | 145 | 110 | 85 | 3 | 18 | 4-φ18 |
50 | 2 | 230 | 160 | 125 | 100 | 3 | 20 | 4-φ18 |
65 | 21/2 | 290 | 180 | 145 | 120 | 3 | 20 | 4-φ18 |
80 | 3 | 310 | 195 | 160 | 135 | 3 | 22 | 8-φ18 |
100 | 4 | 350 | 215 | 180 | 155 | 3 | 24 | 8-φ18 |
125 | 5 | 400 | 245 | 210 | 185 | 3 | 26 | 8-φ18 |
150 | 6 | 480 | 280 | 240 | 210 | 3 | 28 | 8-φ23 |
200 | 8 | 495 | 335 | 295 | 265 | 3 | 30 | 12-φ23 |
250 | 10 | 622 | 405 | 355 | 320 | 3 | 32 | 12-φ25 |
300 | 12 | 698 | 460 | 410 | 375 | 4 | 34 | 12-φ25 |
PN2.5MPa | ||||||||
15 | 1/2 | 130 | 95 | 65 | 45 | 2 | 16 | 4-φ14 |
20 | 3/4 | 150 | 105 | 75 | 55 | 2 | 16 | 4-φ14 |
25 | 1 | 160 | 115 | 85 | 65 | 2 | 16 | 4-φ14 |
32 | 11/4 | 180 | 135 | 100 | 78 | 2 | 18 | 4-φ18 |
40 | 11/2 | 200 | 145 | 110 | 85 | 3 | 18 | 4-φ18 |
50 | 2 | 230 | 160 | 125 | 100 | 3 | 20 | 4-φ18 |
65 | 21/2 | 290 | 180 | 145 | 120 | 3 | 22 | 8-φ18 |
80 | 3 | 310 | 195 | 160 | 135 | 3 | 22 | 8-φ18 |
100 | 4 | 350 | 230 | 190 | 160 | 3 | 24 | 8-φ23 |
125 | 5 | 400 | 270 | 220 | 188 | 3 | 28 | 8-φ25 |
150 | 6 | 480 | 300 | 250 | 218 | 3 | 30 | 8-φ25 |
