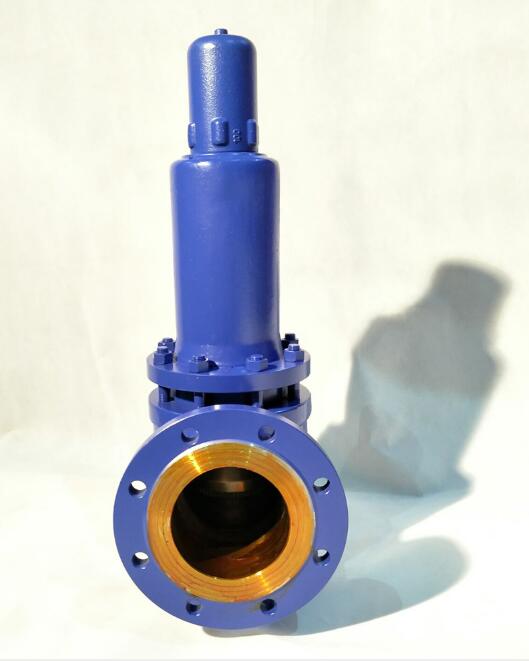

波紋管平衡式安全閥
- 產品名稱：國產激情久久久久影院小草:波紋管平衡式安全閥
- 產品型號：WA42Y
- 產品口徑：DN25-200mm
- 產品壓力：1.6-10MPa
- 產品材質：鑄鋼、不銹鋼
- 聯系電話：021-51061127
- 聯系傳真：021-51062214
- Email：fashengfamen@126.com
- 聯系人：陳云非
- 聯系手機：18217570461
- QQ：203398752
- 公司名：上海閥盛閥門制造有限公司
- 帳號：03416900040048386
- 開戶行：農行上海水清南路支行
- 售后承諾：質保一年，質量三包：包修、包換、包退。
上(shang)海閥(fa)(fa)(fa)(fa)盛(sheng)閥(fa)(fa)(fa)(fa)門制造有限公司主要生產波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)，可(ke)提供波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)價格，波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)說明書，波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)實(shi)物圖(tu)，波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)結構(gou)圖(tu)，波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)外形尺寸，波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)執行標(biao)準，波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)工作(zuo)原理，波(bo)(bo)紋(wen)(wen)(wen)(wen)(wen)管(guan)(guan)(guan)平(ping)(ping)(ping)(ping)衡式(shi)(shi)安(an)(an)(an)全(quan)閥(fa)(fa)(fa)(fa)作(zuo)用特點(dian)。
NO. | 零件名稱 | WA42Y-C型材料 | WA42Y-P型材料 | WA42Y-R型材料 |
1 | 閥體 | WCB | ZG1Cr18Ni8Ti,304 | CF8M |
2 | 閥座 | 2Cr13 | 1Cr18Ni8Ti | 316 |
3 | 調節圈 | 2Cr13 | 1Cr18Ni8Ti | 0Cr18Ni12Mo2Ti |
4 | 閥瓣 | 2Cr13 | 1Cr18Ni8Ti | 316 |
5 | 反沖盤 | 2Cr13 | 1Cr18Ni8Ti | 316 |
6 | 波紋管 | 304 | 304 | 316 |
7 | 導向套 | 2Cr13 | 1Cr18Ni8Ti | 0Cr18Ni12Mo2Ti |
8 | 閥蓋 | ZG230-450 | ZG230-450 | ZG230-450 |
9 | 彈簧 | 50CrVA | 50CrVA包覆氟塑料 | 50CrVA包覆氟塑料 |
波紋管平衡式安全閥外形尺寸：
型號 | 公稱通徑 | do | D | K | g | g1 | b | f | f1 | Z-ød | L | L1 | ≈H |
WA42Y-16 WA42Y-16P WA42Y-16R | 25 | 16 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 | ||
32 | 20 | 140 | 100 | 78 | 18 | 2 | 4-18 | 115 | 100 | 378 | |||
40 | 25 | 150 | 110 | 85 | 18 | 3 | 4-18 | 120 | 110 | 406 | |||
50 | 32 | 165 | 125 | 100 | 20 | 3 | 4-18 | 135 | 120 | 450 | |||
65 | 40 | 185 | 145 | 120 | 20 | 3 | 4-18 | 160 | 140 | 520 | |||
80 | 50 | 200 | 160 | 135 | 20 | 3 | 8-18 | 170 | 135 | 525 | |||
100 | 65 | 220 | 180 | 155 | 22 | 3 | 8-18 | 195 | 175 | 690 | |||
125 | 80 | 250 | 210 | 185 | 22 | 3 | 8-18 | 210 | 190 | 857 | |||
150 | 100 | 285 | 240 | 210 | 24 | 3 | 8-23 | 255 | 230 | 838 | |||
200 | 125 | 340 | 295 | 265 | 26 | 3 | 12-23 | 300 | 260 | 992 | |||
WA42Y-25 WA42Y-25P WA42Y-25R | 25 | 16 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 | ||
32 | 20 | 140 | 100 | 78 | 18 | 2 | 4-18 | 115 | 100 | 378 | |||
40 | 25 | 150 | 110 | 85 | 18 | 3 | 4-18 | 120 | 110 | 406 | |||
50 | 32 | 165 | 125 | 100 | 20 | 3 | 4-18 | 135 | 120 | 450 | |||
65 | 40 | 185 | 145 | 120 | 22 | 3 | 8-18 | 160 | 140 | 520 | |||
80 | 50 | 200 | 160 | 135 | 22 | 3 | 8-18 | 170 | 135 | 525 | |||
100 | 65 | 230 | 190 | 160 | 24 | 3 | 8-23 | 195 | 175 | 690 | |||
125 | 80 | 270 | 220 | 188 | 28 | 3 | 8-26 | 210 | 190 | 780 | |||
150 | 100 | 300 | 250 | 218 | 30 | 3 | 8-26 | 255 | 230 | 838 | |||
200 | 125 | 360 | 310 | 278 | 34 | 3 | 12-26 | 300 | 260 | 992 | |||
WA42Y-40 WA42Y-40P WA42Y-40R | 25 | 16 | 115 | 85 | 58 | 65 | 16 | 2 | 4 | 4-14 | 110 | 95 | 378 |
32 | 20 | 140 | 100 | 66 | 78 | 18 | 2 | 4 | 4-18 | 115 | 100 | 378 | |
40 | 25 | 150 | 110 | 76 | 85 | 18 | 3 | 4 | 4-18 | 120 | 110 | 406 | |
50 | 32 | 165 | 125 | 88 | 100 | 20 | 3 | 4 | 4-18 | 135 | 120 | 450 | |
65 | 40 | 185 | 145 | 110 | 120 | 22 | 3 | 4 | 8-18 | 160 | 140 | 520 | |
80 | 60 | 200 | 160 | 121 | 135 | 24 | 3 | 4 | 8-18 | 170 | 135 | 525 | |
100 | 65 | 235 | 190 | 150 | 160 | 24 | 3 | 4.5 | 8-23 | 195 | 175 | 690 | |
125 | 80 | 270 | 220 | 188 | 176 | 28 | 3 | 4.5 | 8-26 | 210 | 190 | 857 | |
150 | 100 | 300 | 250 | 204 | 218 | 30 | 3 | 4.5 | 8-26 | 255 | 230 | 838 | |
200 | 125 | 375 | 320 | 260 | 282 | 38 | 3 | 4.5 | 12-30 | 300 | 260 | 992 |
波紋管平衡式安全閥外形尺寸：
WA42Y-64 WA42Y-64P WA42Y-64R | 25 | 16 | 140 | 100 | 58 | 78 | 22 | 2 | 4 | 4-18 | 110 | 100 | 277 |
32 | 20 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 130 | 110 | 289 | |
40 | 25 | 170 | 125 | 76 | 95 | 24 | 3 | 4 | 4-23 | 130 | 120 | 319 | |
50 | 32 | 180 | 135 | 88 | 105 | 26 | 3 | 4 | 4-23 | 135 | 130 | 389 | |
65 | 40 | 205 | 160 | 110 | 130 | 28 | 3 | 4 | 8-23 | 175 | 160 | 493 | |
80 | 50 | 215 | 170 | 121 | 140 | 30 | 3 | 4 | 8-23 | 175 | 160 | 483 | |
100 | 65 | 250 | 200 | 150 | 168 | 32 | 3 | 4.5 | 8-26 | 195 | 195 | 613 | |
150 | 100 | 345 | 280 | 204 | 240 | 38 | 3 | 4.5 | 8-34 | 280 | 265 | 894 | |
WA42Y-100 WA42Y-100P WA42Y-100R | 25 | 16 | 140 | 100 | 58 | 78 | 24 | 3 | 4 | 4-18 | 110 | 100 | 277 |
32 | 20 | 155 | 110 | 66 | 82 | 24 | 2 | 4 | 4-23 | 130 | 110 | 289 | |
40 | 25 | 170 | 125 | 76 | 95 | 26 | 2 | 4 | 4-23 | 130 | 120 | 319 | |
50 | 32 | 195 | 145 | 88 | 112 | 28 | 3 | 4 | 4-26 | 135 | 130 | 389 | |
65 | 32 | 220 | 170 | 110 | 138 | 32 | 3 | 4 | 8-26 | 175 | 160 | 493 | |
80 | 40 | 230 | 180 | 121 | 148 | 34 | 3 | 4 | 8-26 | 175 | 160 | 483 | |
100 | 50 | 265 | 210 | 150 | 172 | 38 | 3 | 4.5 | 8-30 | 195 | 195 | 613 | |
150 | 80 | 355 | 290 | 204 | 250 | 46 | 3 | 4.5 | 12-34 | 280 | 265 | 894 |
