船用外螺紋(wen)青銅(tong)止回(hui)閥性能規范Technical Data

公稱壓力 Nominal Pressure (MPa) 公稱通徑 Nominal Diameter (mm) 適用介質Applicable Medium 4.0 10 - 32 海水、淡水、滑油、燃油和f≤2500C蒸汽 Sea water. Fresh water. Lu bricanting oil, Fuel oil,f≤250‘℃steam

船用外螺(luo)紋青銅止回閥(fa)主要零部件材質Materials of Main Parts

零件名稱Parts Name 材料Material 　 名稱Name 牌號Marks 閥體Body 鑄鋁青銅Cast Aluminum Bronze ZCuA19Mn2 閥蓋、閥盤Cover/Disc 鋁青銅Aluminum Bronze CuA19Mn2

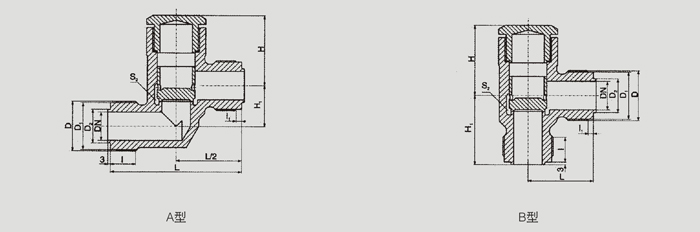

船用外螺(luo)紋青銅止(zhi)回閥(fa)基本尺寸Dimensions

公稱 結構尺寸Structure Dimension 螺紋接頭 扳手尺寸 Wrench Size 升程 參考重量 通徑DN L H≈ Hi Thread Jo nf S2 Lift Range Weight(kg) (mm) A型 B型 　 A型 B型 D Di D2 l |1 A型 B型 m A型 B型 10 94 47 54 20 41 M27×1.5 24.8 14 16 3 27 32 7 0.61 0.58 15 110 55 61 25 52 M36×2 33 22 22 5 32 41 10 1.00 0.94 20 116 58 65 32 55 M39 x 2 36 25 23 5 36 46 12 1.19 1.24 25 130 65 70 38 64 M48X2 45 32 26 6 46 50 14 1.71 1.58 32 140 70 84 46 72 M56×2 53 38 28 6 46 60 16 2.87 2.61
