氧氣截(jie)止閥當前位置:首頁 > 產品中心 > 低溫閥門 > 氧氣截止閥
  • Jy41W-16P氧氣管路專用截止閥

Jy41W-16P氧氣管路專用截止閥

  • 產品名稱:國產激情久久久久影院小草:Jy41W-16P氧氣管路專用截止閥
  • 產品型號:Jy41W
  • 產品口徑:DN25-500mm
  • 產品壓力:1.6Mpa
  • 產品材質:不銹鋼
  • 聯系電話:021-51061127
  • 聯系傳真:021-51062214
  • Email:fashengfamen@126.com
  • 聯系人:陳云非
  • 聯系手機:18217570461
  • QQ:203398752
  • 公司名:上海閥盛閥門制造有限公司
  • 帳號:03416900040048386
  • 開戶行:農行上海水清南路支行
  • 售后承諾:質保一年,質量三包:包修、包換、包退。

上海閥(fa)(fa)盛閥(fa)(fa)門(men)制(zhi)造有限公(gong)司主要(yao)生產Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa),可提供Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa)價格,Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa)說明書(shu),Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa)實物圖,Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa)結構圖,Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa)外形尺寸,Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa)執行標準,Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa)工作原理(li),Jy41W-16P氧(yang)氣(qi)(qi)(qi)管(guan)(guan)(guan)路專(zhuan)(zhuan)(zhuan)用(yong)(yong)(yong)(yong)截(jie)(jie)(jie)止閥(fa)(fa)作用(yong)(yong)(yong)(yong)特(te)點。

Jy41W-16P氧氣管路專用截止閥產品規范
公稱壓力:1.6MPa
公稱通徑:25mm~500mm
適用介質:O2、N2、Ar、Air等
適用溫度:-40~+80℃
連接方式:法蘭
介質流向:由閥瓣下面向上流
氧氣介質:禁油

Jy41W-16P氧氣管路專用截止閥主要零部件材料
閥體、閥蓋:不銹鋼
閥瓣、閥桿:不銹鋼
填料、密封圈:PTFE

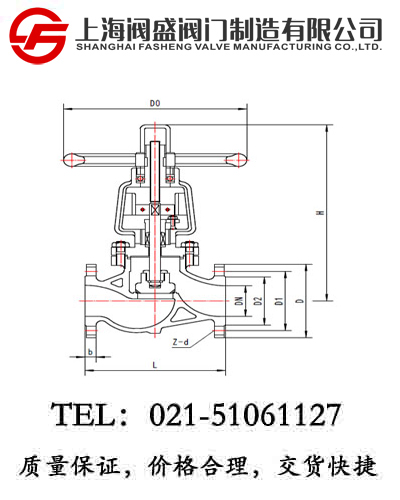

Jy41W-16P氧氣管路專用截止閥外型與連接尺寸
產品型號
Jy41W-16P氧氣管路專用截止閥
重量
(kg)
產品代號
通徑
DN
尺寸(mm)
L
D
D1
D2
b
Z-Φd
H
D0
Y222J15AA2A4
15
130
95
65
45
16
4-14
202
100
6
Y222J25AA2A4
25
160
115
85
65
16
4-14
236
125
8
Y222J40AA2A4
40
200
145
110
85
18
4-18
328
160
19
Y222J50AA2A4
50
230
160
125
100
20
4-18
450
320
37
Y222J65AA2A4
65
290
180
145
120
22
8-18
530
360
52
Y222J80AA2A4
80
310
195
160
135
22
8-18
560
400
69
Y222J100AA2A4
100
350
230
190
160
24
8-23
618
450
93
Y222J125AA2A4
125
400
270
220
188
28
8-25
675
450
120
Y222J150AA2A4
150
480
300
250
218
30
8-25
743
560
153
Y222J200AA2A4
200
600
375
320
282
38
12-30
850
640
304
Y222J250AA2A4
250
650
445
385
345
42
12-34
975
720
560
Y222J300AA2A4
300
750
510
450
408
46
16-34
1115
800
805
Y222J400AA2A4
400
950
655
585
535
58
18-41
1425
900
1408
Y222J500AA2A4
500
1250
755
670
615
57
20-42
1835
1200
1790
注:DN≤150不帶外旁通             介質流動方向:由閥瓣的下面向上流
