  • DJ41Y-100P低溫高壓截止閥

DJ41Y-100P低溫高壓截止閥

  • 產品名稱:國產激情久久久久影院小草:DJ41Y-100P低溫高壓截止閥
  • 產品型號:DJ41Y
  • 產品口徑:DN15-50mm
  • 產品壓力:10Mpa
  • 產品材質:不銹鋼
  • 聯系電話:021-51061127
  • 聯系傳真:021-51062214
  • Email:fashengfamen@126.com
  • 聯系人:陳云非
  • 聯系手機:18217570461
  • QQ:203398752
  • 公司名:上海閥盛閥門制造有限公司
  • 帳號:03416900040048386
  • 開戶行:農行上海水清南路支行
  • 售后承諾:質保一年,質量三包:包修、包換、包退。

上海閥(fa)(fa)盛閥(fa)(fa)門制造(zao)有限(xian)公司主要生產DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa),可提供DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa)價格,DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa)說(shuo)明書,DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa)實物(wu)圖,DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa)結(jie)構圖,DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa)外形尺(chi)寸,DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa)執行標準,DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa)工作原(yuan)理,DJ41Y-100P低(di)(di)溫(wen)(wen)高(gao)(gao)壓(ya)(ya)截(jie)(jie)(jie)止閥(fa)(fa)作用特點(dian)。

DJ41Y-100P低溫高壓截止閥產品規范
公稱壓力:10.0MPa
公稱通徑:15mm~50mm
適用介質:LO2、LN2、LAr、LNG、LC2H4等
適用溫度:-196~+80℃
連接方式:法蘭
介質流向:由閥瓣下面向上流

DJ41Y-100P低溫高壓截止閥主要零部件材料
閥體、閥蓋、閥瓣、閥桿:不銹鋼
填料:PTFE
密封圈:紫銅
閥瓣:堆焊司太立合金

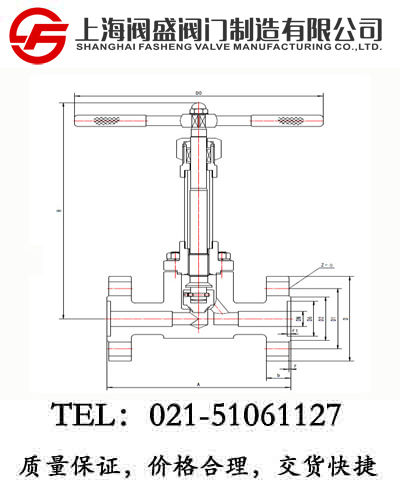

DJ41Y-100P低溫高壓截止閥外型與連接尺寸
產品型號
DJ41Y-100P低溫高壓截止閥
重 量
(kg)
產品代號
通徑
DN(mm)
尺寸(mm)
A
H1
H2
D
D1
D2
D6
Z-d
b
f
D0
622J15AD2C3
15
170
320
310
105
75
55
40
4-14
20
2
250
9.7
622J20AD2C3
20
190
365
350
125
90
68
51
4-18
22
2
250
11.9
622J25AD2C3
25
210
375
360
135
100
78
58
4-18
24
2
350
13.8
622J40AD2C3
40
260
490
470
165
125
95
76
4-23
26
3
450
28.1
622J50AD2C3
50
300
530
500
195
145
112
88
4-25
28
3
650
38.5
