低溫(wen)緊急切斷閥當前位置:首頁 > 產品中心 > 低溫閥門 > 低溫緊急切斷閥
  • DJ661F-25P低溫氣動緊急切斷閥

DJ661F-25P低溫氣動緊急切斷閥

  • 產品名稱:國產激情久久久久影院小草:DJ661F-25P低溫氣動緊急切斷閥
  • 產品型號:DJ661F
  • 產品口徑:DN20-200mm
  • 產品壓力:2.5Mpa
  • 產品材質:不銹鋼
  • 聯系電話:021-51061127
  • 聯系傳真:021-51062214
  • Email:fashengfamen@126.com
  • 聯系人:陳云非
  • 聯系手機:18217570461
  • QQ:203398752
  • 公司名:上海閥盛閥門制造有限公司
  • 帳號:03416900040048386
  • 開戶行:農行上海水清南路支行
  • 售后承諾:質保一年,質量三包:包修、包換、包退。

上(shang)海閥(fa)盛閥(fa)門制造有限公司主要(yao)生(sheng)產DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa),可提供DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa)價格,DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa)說明書,DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa)實物圖(tu),DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa)結構圖(tu),DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa)外(wai)形尺寸,DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa)執行標準,DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa)工(gong)作原理,DJ661F-25P低(di)溫(wen)氣(qi)(qi)(qi)(qi)(qi)動(dong)(dong)(dong)緊(jin)急(ji)切(qie)斷(duan)閥(fa)作用特點

DJ661F-25P低溫氣動緊急切斷閥產品規范
公稱壓力:2.5MPa
公稱通徑:20mm~200mm
適用介質:LO2、LN2、LAr、LNG、LC2H4等
適用溫度:-196~+75℃
連接方式:承插焊
介質流向:由閥瓣上面向下流
氣源壓力:0.3~0.6MPa
緊急切斷溫度:70±5℃

DJ661F-25P低溫氣動緊急切斷閥主要零部件材料
閥體、閥蓋、閥瓣、閥桿:不銹鋼
填料:PTFE
密封圈:PTFE或PCTFE
氣缸、支架:鑄鋁

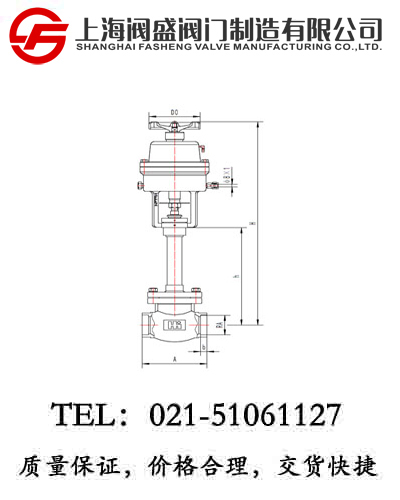

DJ661F-25P低溫氣動緊急切斷閥外型尺寸與連接尺寸
產品型號
DJ661F-25P低溫緊急切斷閥
重量
(kg)
產品代號
通徑
DN(mm)
尺寸(mm)
A
H
h
D0
RA
b
333E20AB2A3P
20
90
400
200
100
25.5
8
6
333E25AB2A3P
25
100
400
200
100
32.5
8
6.2
333E32AB2A3P
32
110
468
204
120
38.5
10
10.5
333E40AB2A3P
40
120
523
230
120
45.5
10
10.7
333E50AB2A3P
50
150
523
230
120
57.5
15
17.8
333E65AB2A3P
65
180
651
250
120
76.5
15
20.5
333E80AB2A3P
80
210
736
320
160
89.5
15
32.1
333E100AB2A3P
100
250
736
320
160
108.5
20
50.4
333E125AB2A3P
125
300
1020
470
300
133.5
25
68.6
333E150AB2A3P
150
350
1050
500
300
159.5
25
95.4
333E200AB2A3P
200
430
1150
600
300
219.5
25
151.1
